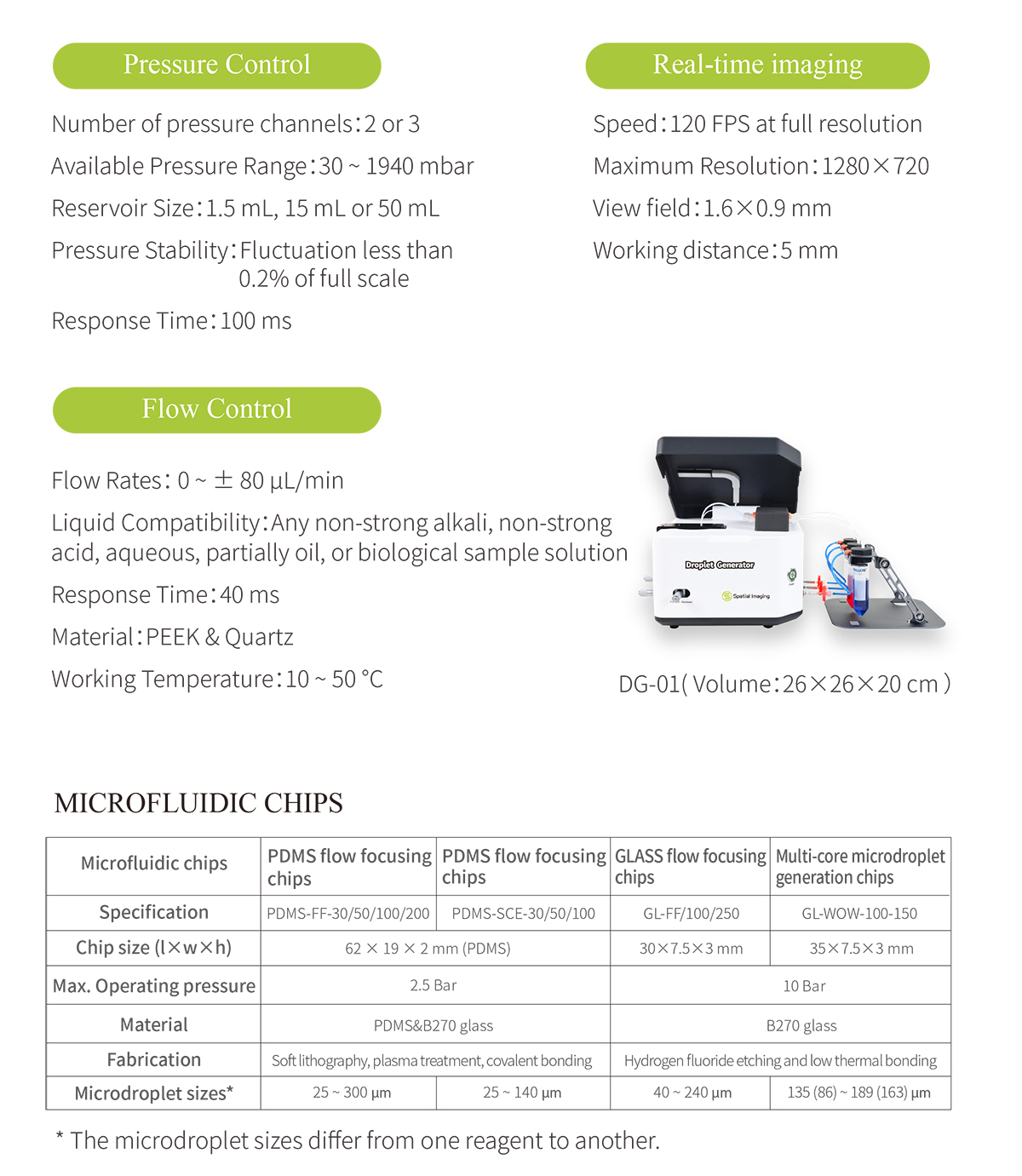

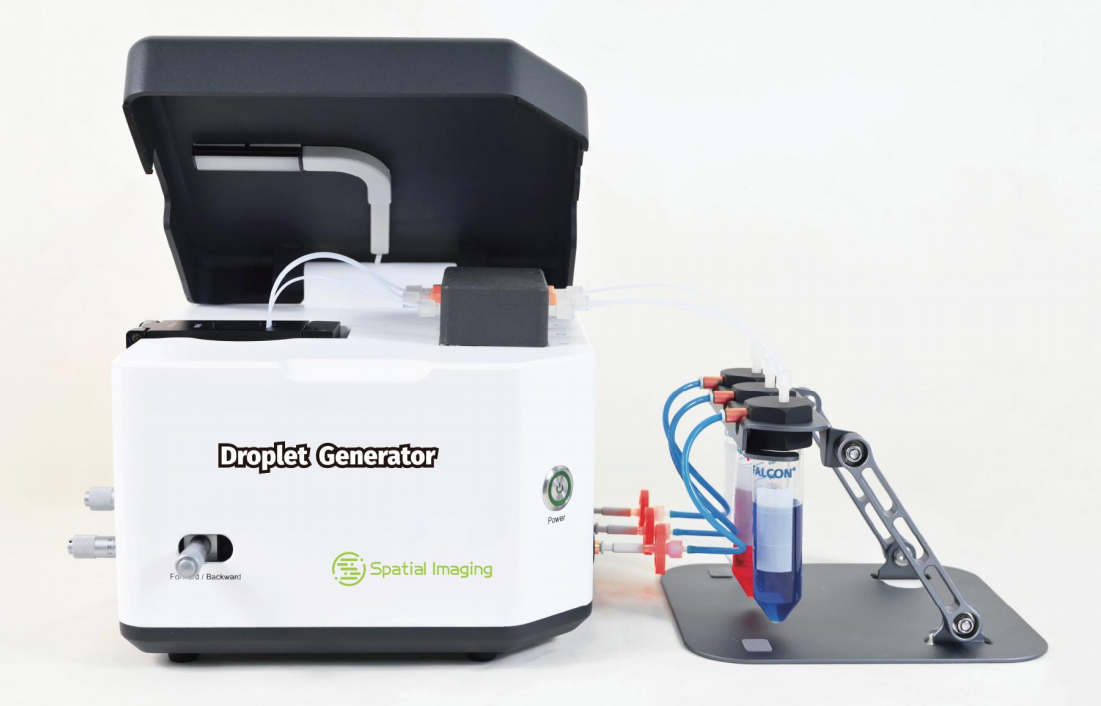

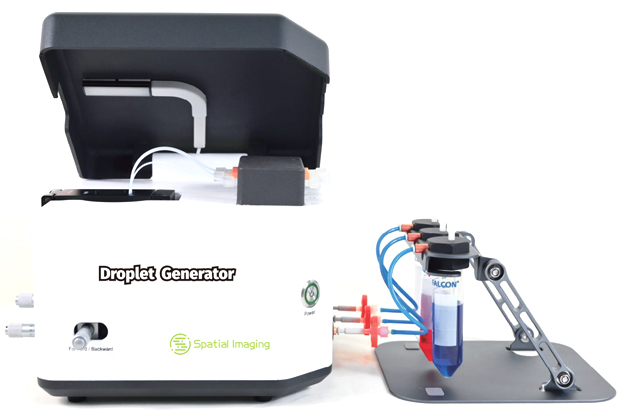

The DG-01 is the most advanced microdroplets/microspheres preparation system. Onethat integrates pressure control, flow monitor and real-time imaging for real-time con.trol and observation of microdroplets.

With the real-time monitoring of pressure and flow rate, the continuous phase anddispersed phase was injected into the FluidicLab standard microfluidic chip at a con-stant flow rate to generate high monodisperse microdroplets with a diameter of 25~300um. Build in camera enables real-time observation of droplet generation, which ensuresthe extremely high repeatability and stability of generated microdroplets. The compactinstrument can work in a clean bench or anaerobic incubator.

The DG-01 can be used to prepare various microdroplets/microspheres with differentmicrofluidic chips and reagents, which is widely used in a range of research fields includ.ing single cell analysis, drug screening, cell culture, regenerative medicine, synthetic biology and tissue engineering. Learn more on our website http://www.au-spatialimaging.com.

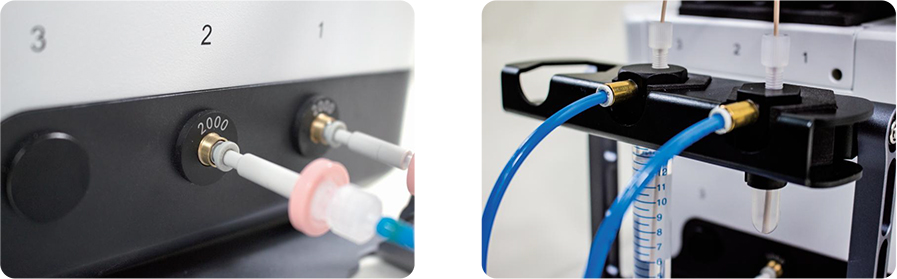

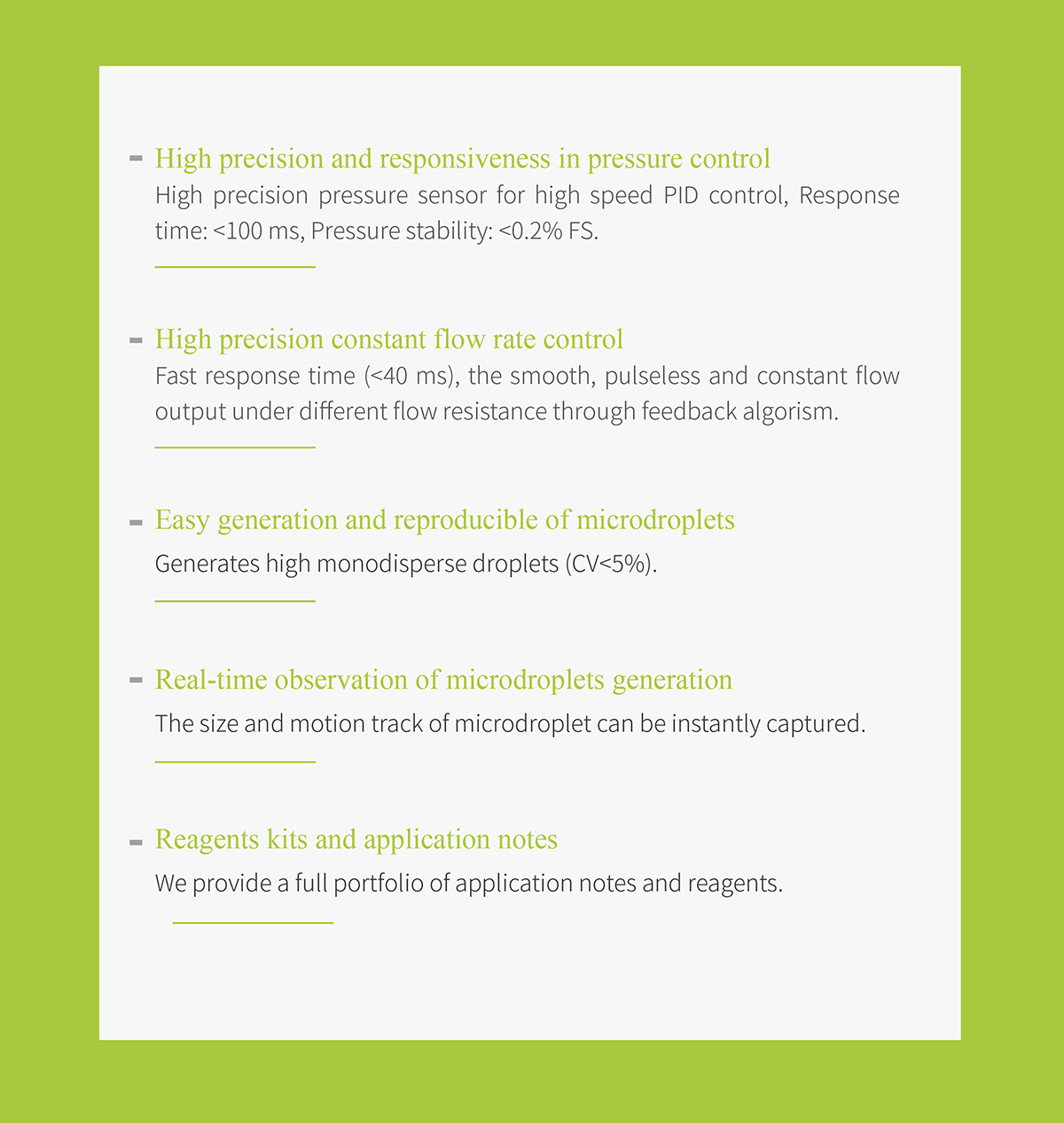

High precision and responsiveness of the pressure control
◆ Based on pressure control and fast PlD control, the pressure stability <0.2%.
◆ the response time to reach the set value is less than 100 ms.

◆ Support standard reservoir size ranges from 1.5 mL to 50 mL.

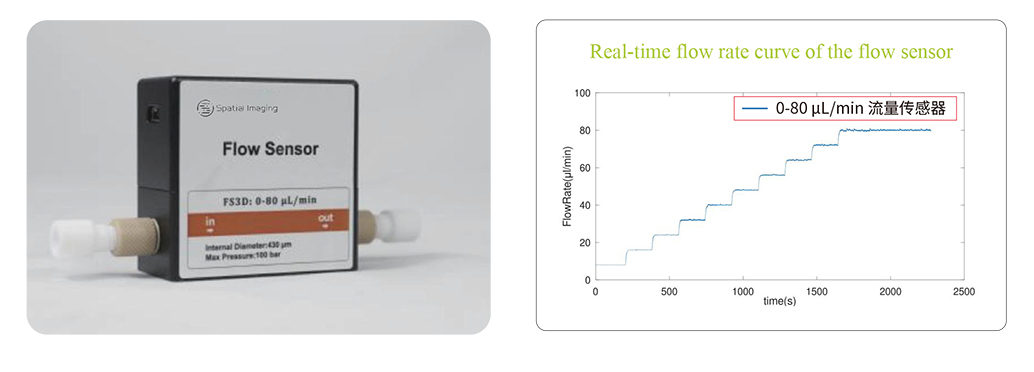

High precision constant flow rate control
◆ The key in flow rate control is an integrated temperature sensor chip, which measuresprecisely through thermal difference.
◆ The pressure output is controlled via feedback algorism to achieve a smooth, pulse-less and constant flow monitoring (ranging from 0 to 80 μL/min).
◆ The response time ofconstant flow control is less than 40 ms, which is capable in vari-ous applications of different flow resistance.

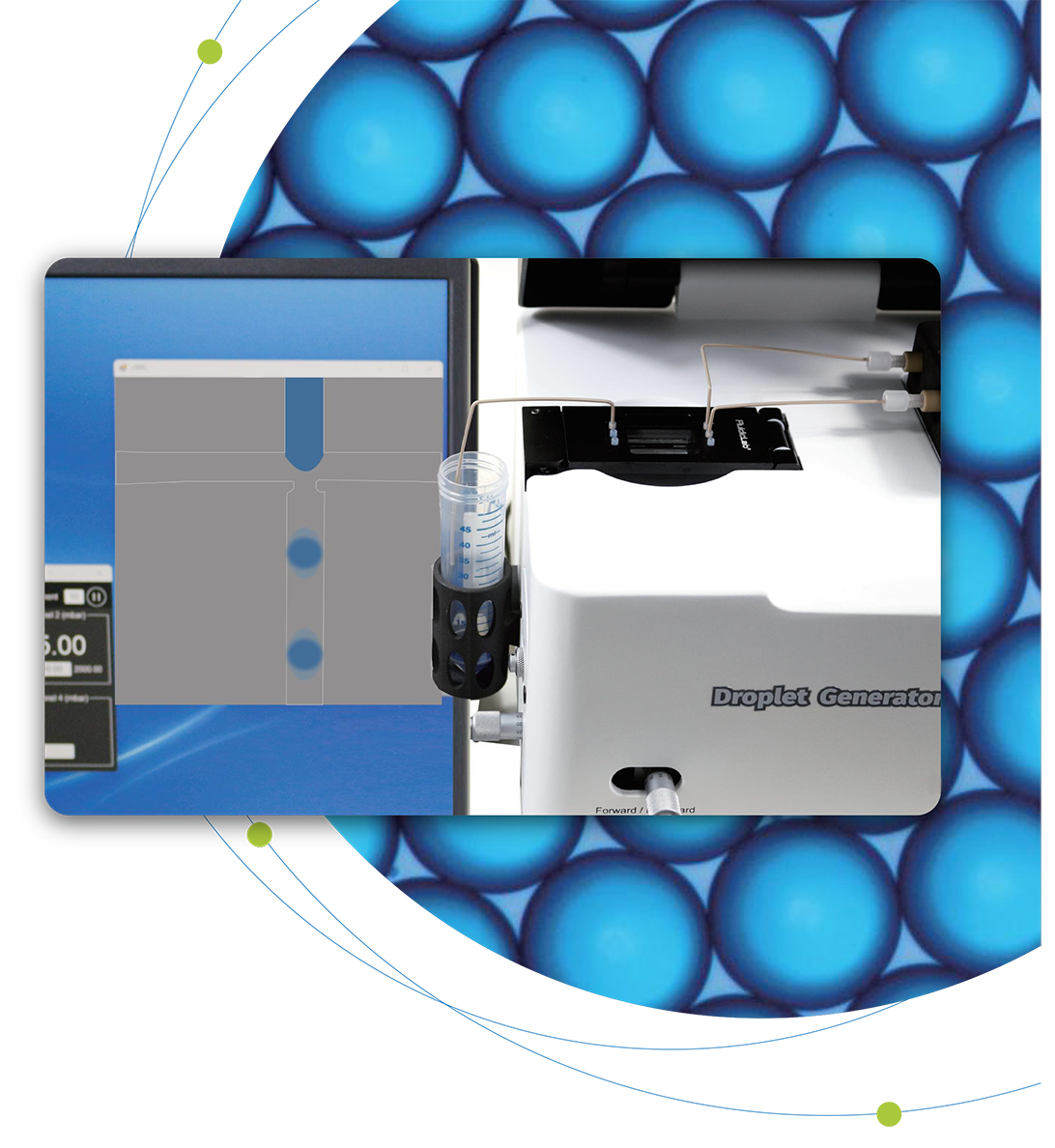

Real-time observation of microdroplets generation
With a microscope and build in camera, the size and status of microdropletcan be instantly captured.

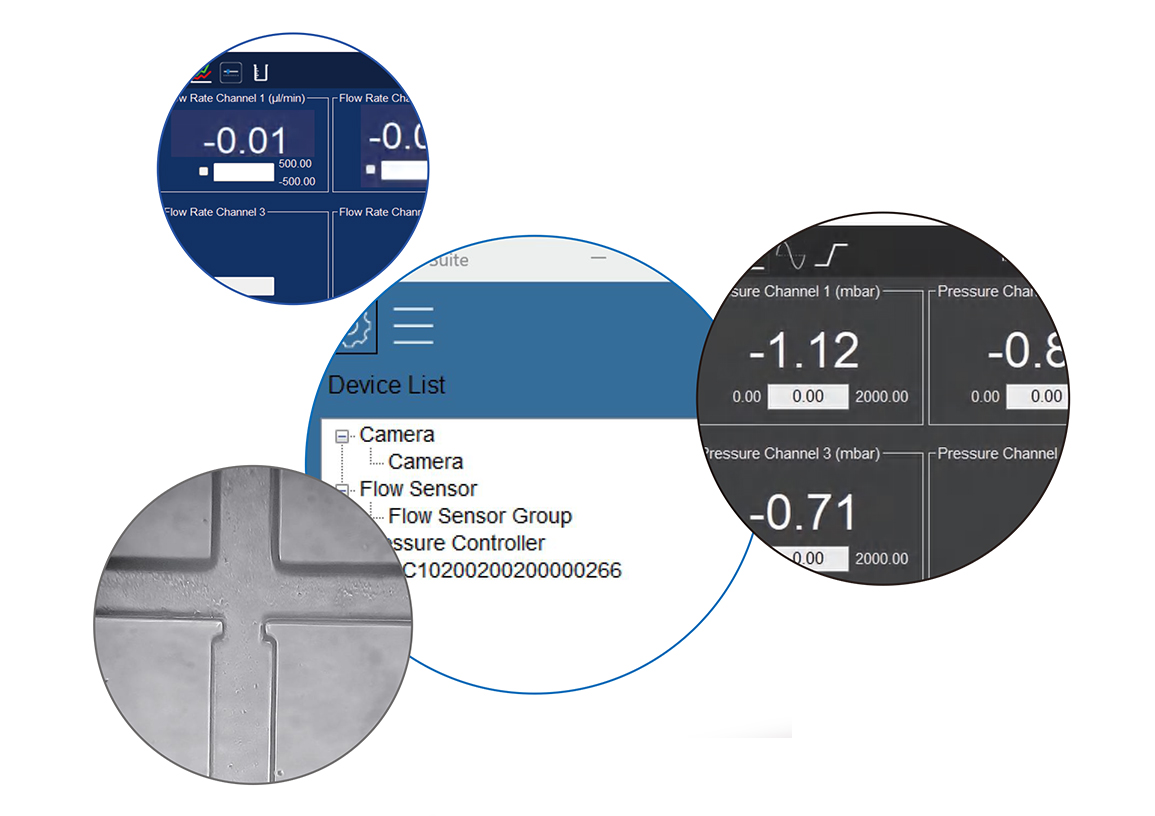

User-friendly software operation interface
◆ The user of software is simple and intuitive

◆ Can be achieved by few simple clicks smooth and pulseless constant pressure orconstant flow rate output.

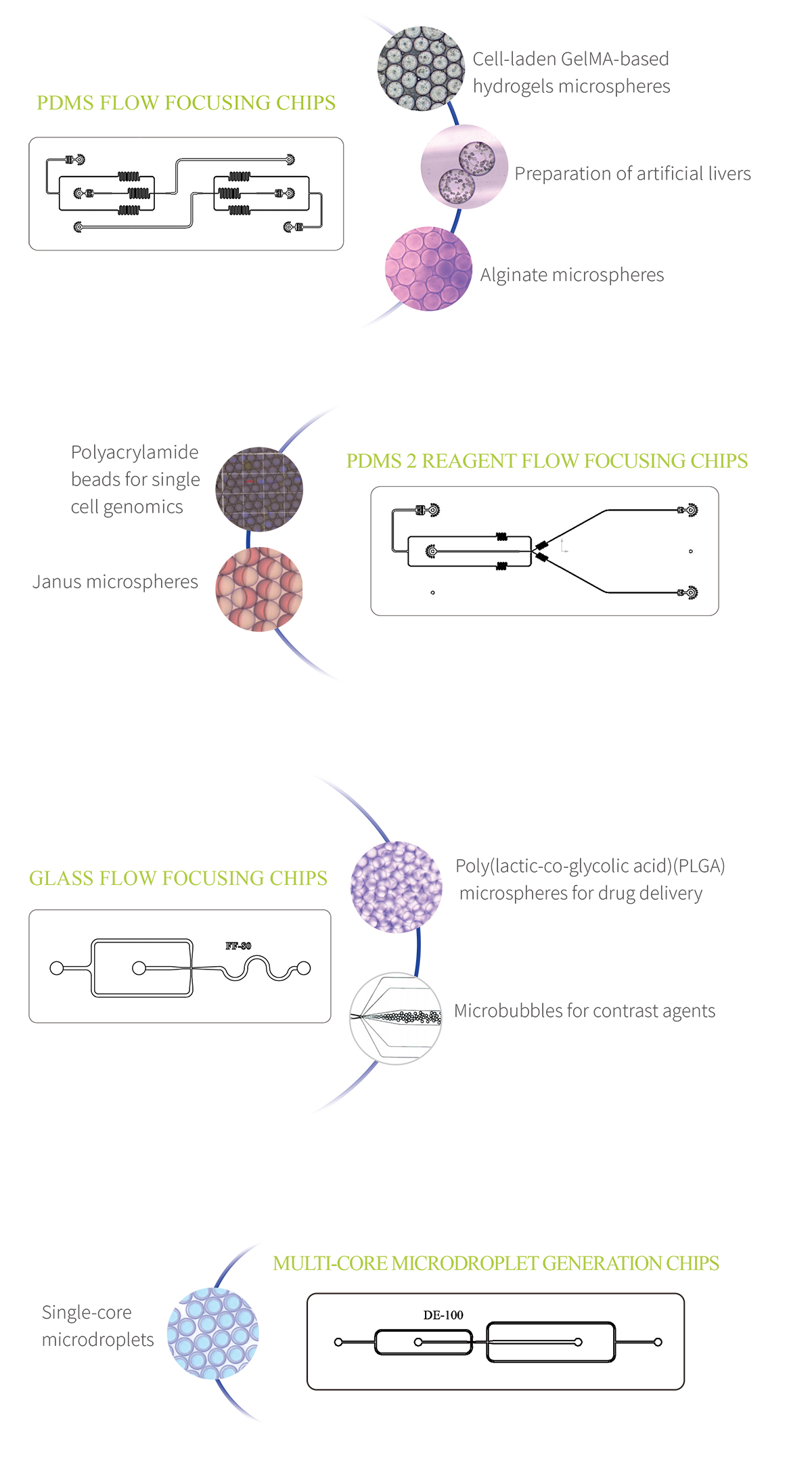

Microdroplets/microspheres size from 25 to 300 um

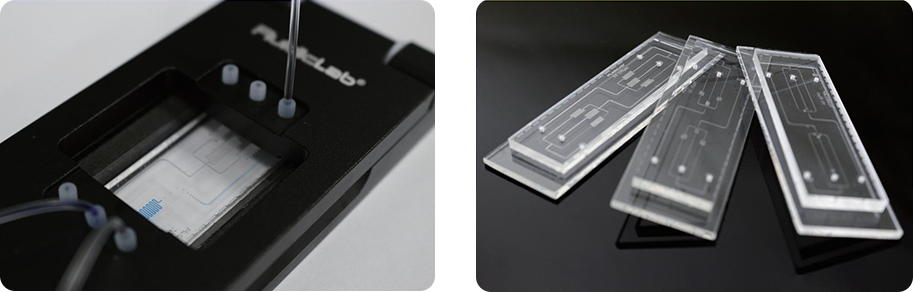

◆ Standard microdroplets/microsphere generation chips and chip holders are provid-ed for the preparation of both W/0 and O/W emulsion.

◆ The assembly of chip and connection tubingis simple and convenient.

◆ Spatiallmaging provides customized chip services.

Reagents kits and application note
◆ Drop-surf droplet generation oil with good biocompatibility, meeting the strin-gent requirements of cell and tissue culture

◆ Drop-surf demulsifier rapidly and thoroughly removes the surfactant to break theemulsion droplets, allowing the release of the droplet phase for further analysesand research.
◆ We provide a full portfolio of application notes and reagent kits to ensure therepeatability ofyour experiments, greatly reducing your trial-and-error costs.
